MOHR 3-Side Trimmer BC 330

MOHR 3-Side Trimmer BC 330

the Book Cutter with 18.5" touchscreen display

The sturdy and networkable 3-Side Trimmer MOHR BC 330 is the latest development for automatically cutting perfect-bound or saddle-stitched products (e.g. books). In contrast to three-knife trimmers, it only has one knife for cutting three sides.

  • Integration into the digital workflow
  • Variable size options from product to product
  • Cutting unit – easily accessible enabling a swift and simple knife change
  • Minimum maintenance required due to the use of innovative material
A gripper puts the product into the correct cutting position. The cut is hydraulic, which enables the time the knife spends in the bottom dead center to be adapted to the material. The robust cutting unit guarantees a precise cut that is gentle on the material. The applied pressure can be infinitely adjusted to every material to be cut within a large adjustment range.

To increase performance, several products, stacked on top of each other, can be cut simultaneously.

The BC 330 is operated from an ergonomically positioned 18.5" touchscreen display.
Repeat cut sizes can be saved and adapted at any time. In order to start the cutting program automatically, the machine can be equipped with a bar-code reader. This allows setup times to be reduced to almost zero.

Technical Data

Performance (single | multiple block) Books/h 220 520
Inner book untrimmed, min. | max. mm 107 x 152 305 x 330
Inner book trimmed, min. | max. mm 105 x 148 303 x 326
Head trim, min. | max. mm 2 100
Tail trim, min. | max. mm 2 100
Book thickness, min. | max. mm 5 51

1 Option to

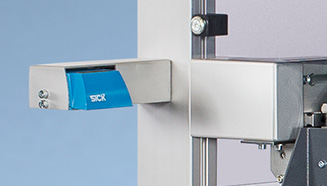

  • Barcode - Enables automatic loading of the appropriate cutting program
